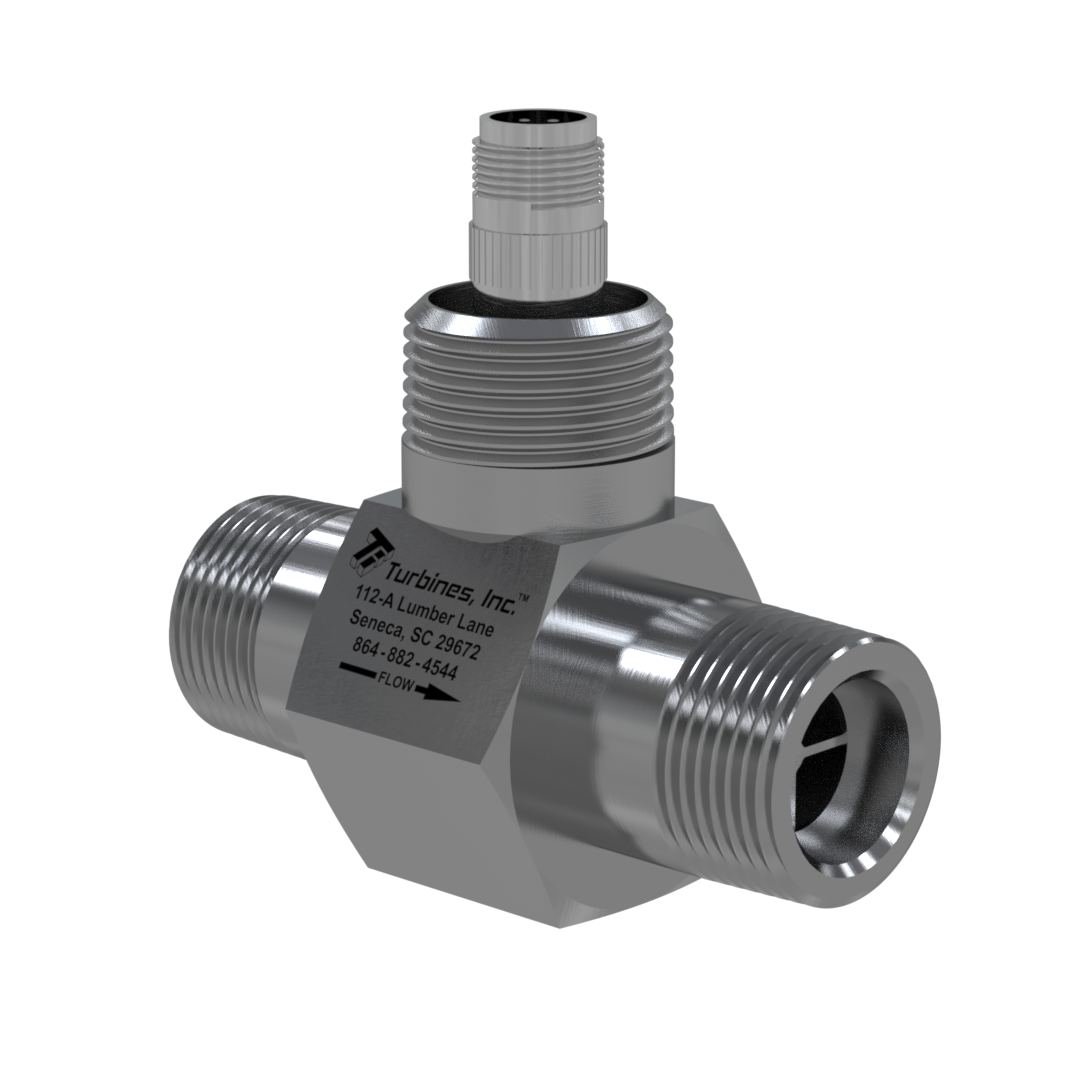

1" Gas Turbine Meter with NPT ends, 440C Ball Bearings with PGM Retainer, 316 SS construction, 17-4PH Rotor (0.5-20 acfm)
Unit of Measure
Brands |
N/A Turbines, Inc. |
Series |
N/A TMG |
Meter Inside Diameter (ID) |
N/A 1 in |
Process Connection Size |
N/A 1 in |
Process Connection |
N/A National Pipe Thread (NPT) |
Flow Range |
N/A 0.5 to 20 acfm |
Bearing Material |
N/A 440C Stainless Steel |
Shaft Material |
N/A 316 Stainless Steel |
Housing Material |
N/A 316 Stainless Steel |
Rotor Material |
N/A 17-4PH |
| Linearity (±)1 | N/A 1 % |
Maximum Pressure |
N/A 3325 psi |
Media Type |
N/A Gaseous |
Minimum Process Temperature |
N/A -450 ºF-268 ºC |
Maximum Process Temperature |
N/A 450 ºF232 ºC |
Lay Length |
N/A 4 in |
Weight |
N/A 2 lb |
OOS Lead Time |
N/A 10 Working Days |
Accessories |
N/A
900299, 2.25 Inch (in) Coil Length and 100 Gauss Magnetization Variable Reluctance Coil ($140.19) 900502, 0.1875 x 0.0937 x 0.0625 Inch (in) PGM Retainer Ball Bearing with 440C Balls and Raceways ($147.50) TMGK0100L, TMG Series 0.5 to 20 Actual Cubic Feet per Minute (acfm) Flow Range Gas Internal Kit ($1,008.68) |
Typical Applications |
N/A
|
Expected Delivery |
N/A 1-2 Weeks |
- 1 Density Dependent
