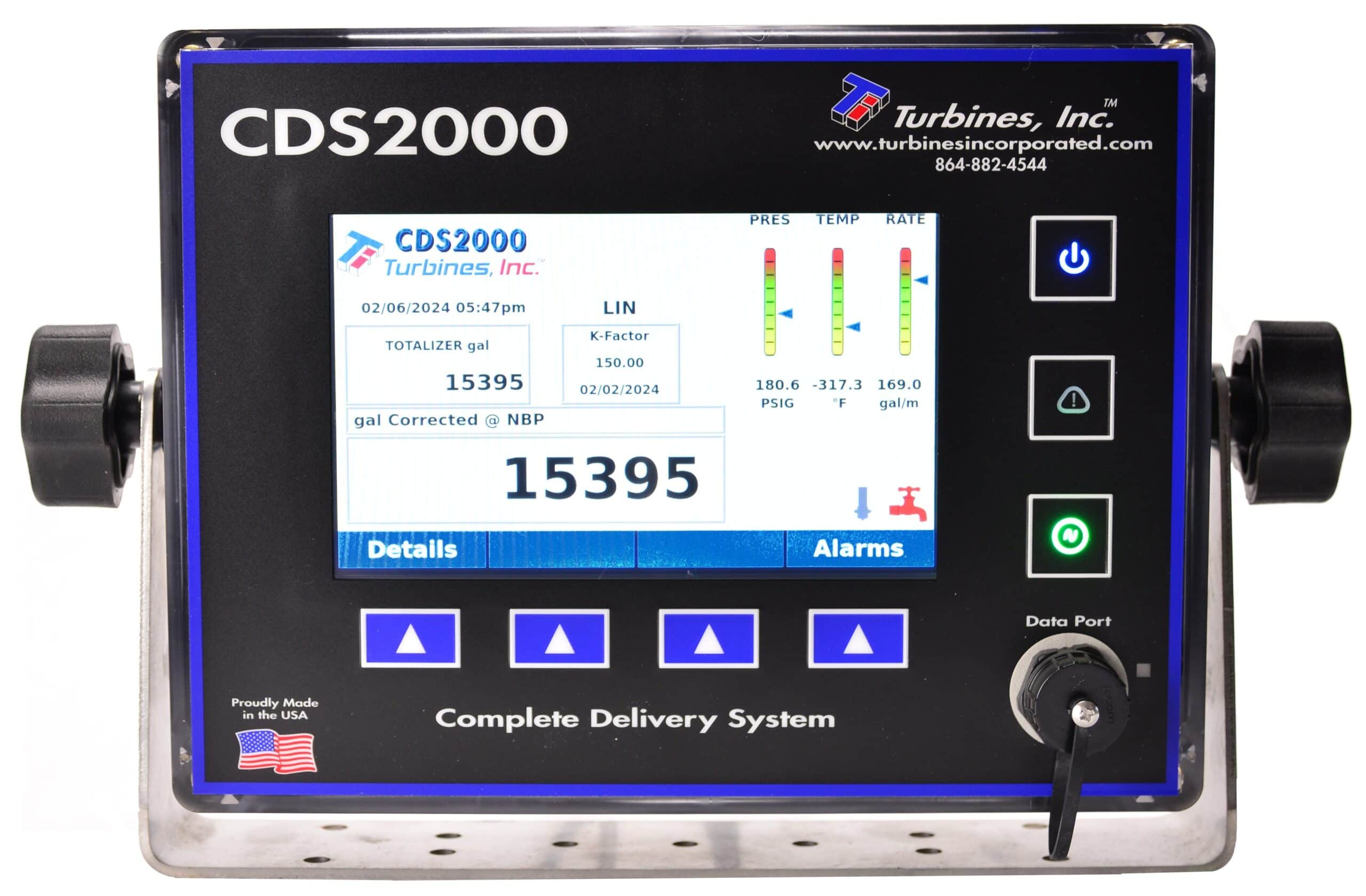

CDS2000 – Cryogenic Flow Totalizer
- 10 point linearization
- Realtime calculations and graphics
- Pump housing temp sensing or leak detection
The CDS2000 is a next generation, full color industrial grade LCD touch screen system that delivers industry leading features while maintaining a user-friendly simplicity of operation.
- Specifications
Signal Input Frequency range: 0-2500Hz
Sensitivity: 15mv RMS @ 101Hz (min); 50mV RMS @ 500Hz (min); 400mV RMS @ 2.5 KHz (min)
Impedance: Approx. 14K Ohms
Noise immunity: High frequency roll off, FCO @ 2.5KHz
Pickup coil failure detection
Optional dual pickupSensor Inputs Temperature probes, product & pump housing:
*100, 1K and 10K RTD inputs, silicon diode and 4-20 mA
*RTD probe:.00385U/U C European din curve
*Stabilized AFE precision current source
Power: Continuous monitoring of main power, backup Super Cap & sensors.
Pressure Transducer, 2-wire 4-20mA; loop excitationPhysical &
EnvironmentalOperating temperature: -40 to 50C
Humidity: 5-95%, non condensing
Sealed, shock vibration tested enclosure
Dimmensions: 10.5: (L) X 8.9” (H) X 2.75” (W)
Weight: 4.5 lbs without bracket; 5.25 lbs with bracketPower *9-26Vdc with self-resetting fuse (polarity insensitive)
*1A @ 12v average power consumption
*Transient protection
*Internal super capacitor allows continuous operation for up to 10 sec. after power loss for memory retentionLinearization 10 Point - Description
The CDS2000 is a next generation, full color industrial grade LCD touch screen system that delivers industry leading features while maintaining a user-friendly simplicity of operation. Programming the CDS2000 is merely a matter of selecting the desired operating criteria from an all-inclusive menu, thus eliminating the need to scroll through an entire flowchart to enter or change select data.
The CDS2000 is a microcontroller-based rate/totalizer that calculates and displays in real time the effects of temperature and pressure on computed volumetric or mass values. Pertinent delivery parameters such as temperature, pressure, flow rate, fluid density, compensated volume are displayed on the operating screen. Additional operating information is contained on the detail screens which drastically minimizes support time.
The CDS2000 is NTEP certified and can be used to monitor all cryogenic liquid transfer applications, including custody transfer requirements. In addition to operating seamlessly with our TMC Cryogenic flow meters to deliver proven results, the CDS2000 also works with any frequency generating device including competitors’ flow meters.
