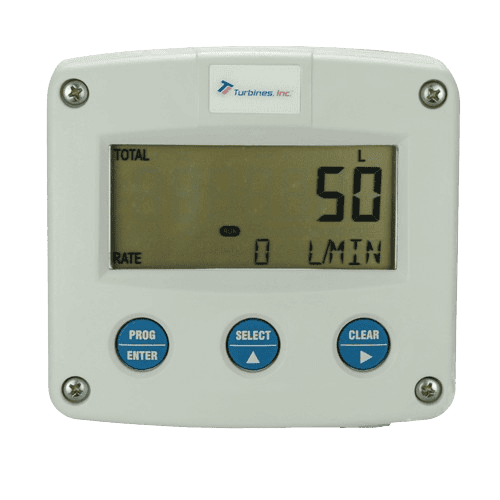

F Series Flow Monitor
- Intrinsically safe option
- NEMA 4 Rated Enclosure
- Operating Temperature: ‐40°F to 158°F
The Turbines, Inc. F Series of flow monitors provides a host of features, many of which are appropriate for industrial flow measurement applications, as well as agricultural, commercial, water flood and other oil & gas production needs prevalent within these industries today.
- Description
The F Series flow monitors display rate and total, allowing seamless integration with turbine meters and other frequency-generating devices. Programmable by a front keypad, these monitors feature a backlit LCD, multiple engineering units, and 2-15 point linearization for enhanced metering accuracy. The flow data is relayed via scalable pulse, 4-20mA, or Modbus outputs. With intrinsically safe or weatherproof options, these monitors feature a GRP enclosure* and a temperature range of -40°F to +158°F, allowing for operation in harsh environments.
- Specifications
Display Large high intensity transreflective LCD 40 x 90 mm with seven 17mm digits and eleven 8mm digits.
Automatic contrast adjustment for temperature variations.Control Panel Three micro-switch keys with UV - resistant polyester key pad Enclosure Polycarbonate window
UV - resistant coated aluminum enclosure with stainless steel bolts (F012P-HA)
Optionally available in all ABS enclosure (F012P)Mounting Arrangement Suitable for direct mount is standard.
Optionally available wall mount, horizontal or vertical pipe mount and panel mount.Gross Dimensions T130 x 114 x 58 mm (5.1' x 4.5" x 2.3" L x H x D.) Panel cut-out requirements (115 x 96 mm.) Operating Temperatures T-30°C to +80°C (‐40°F to 158°F) Battery Lithium-lifespan dependent upon settings: Average life up to seven years. Configuration Performed at SET-UP level. Each function displayed in understandable texts. All settings programmable; NO mechanical DIP-switches. Password SET-UP level password protected. Data Protection EEPROM backup of all settings.
Backup accumulated total every 1 minute.
Data retention 10 years.Selection Main Functions Total or Flow rate will be displayed with 17mm digits. Approvals and Certifications CSA approvals available where necessary with intrinsically safe design. - Documentation
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.
Certifications
ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN
