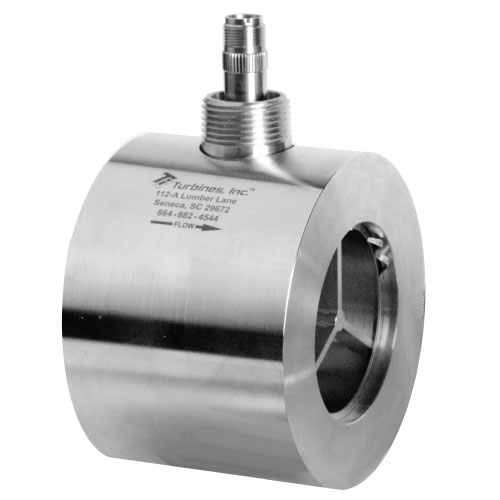

WMG Series Gas Flow Meter
Accuracy of +/- 1.0% of rate
Temperature Application -450° F to +450° F (850° F with special coil)
Repeatability of 0.1%
- Line sizes 1″ to 4″
- Flow rates from 0.5 to 1,250 ACFM
- Pressure up to 3,700psi
- Specifications
Line sizes 1" to 4" Linearity +/- 1.0% over standard flow range (density dependent) Repeatability +/- 0.1% over standard flow range Flow Rate 0.5 to 1,250 ACFM Operating Temperature -450° F to +450° F (850° F with special coil) Operating Pressure Up to 3,700psi, subject to process piping capacity provided by others Materials Meter Body 316 Stainless steel (consult factory for other options) Rotor 17-4PH Stainless steel (consult factory for other options) Bearings 440C Stainless steel ball bearings with self-lubricating retainer Additional Information Full line of Retrofit Kits are available
Factory refurbishment availableConnections Wafer style Certifications CRN Certified , ISO 9001, NIST traceable calibration - Description
The WMG Series flow meter is engineered to handle measurement in challenging environments. Designed specifically for gas applications such as CO2, natural gas, and air, this meter is meant to be installed between two flanges. The WMG meter delivers +/‐ 1% standard linearity in sizes of 1” to 4” covering flows from 0.5 to 1,250 ACFM. Turbines, Inc. documents the K-factor for each meter using a NIST-traceable factory or independent laboratory calibration.
- Documentation
Support and Service
Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.
If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.
Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.
