HAK Turbine Meter Retrofit Kit – HA Series

Accuracy +/- 0.5% of rate
Wide Temperature Application -450°F to +850°F
Highly configurable materials of construction

Line sizes from 1/2″ to 12″
Flow rates from 1 to 12,000 gpm

Get A Quote View Catalog

Description

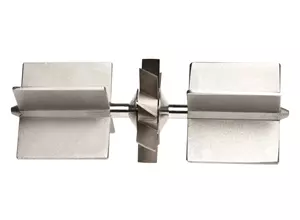

The HA Series turbine flow meter internal kit is easy to install, allowing for minimal downtime and efficient maintenance. The HA Series kit contains all internal parts of the meter: rotor, bearings, support assemblies, and snap rings. The meter internals have a designed temperature range of -450° F to +450°F (850°F with special coil), covering flow rates of 1 to 12,000gpm with a standard linearity of +/- 0.5%. and repeatability of +/- 0.1%. Turbines, Inc. documents internal kit performance by means of a NIST-traceable factory or independent laboratory calibration.

Line sizes	1/2″ to 12″
Accuracy	+/- 0.5% over flow range (for 0.25% consult factory)
Repeatability	+/- 0.1 % over flow range
Operating Temperature	-450°F to +450°F (higher temperatures available)
Flow Rates	From 1 to 12,000gpm
Materials	Rotor Supports: 316 stainless steel Meter Rotor: 17-4PH, Nickel 200, consult factory for other options Rotor Shaft: 316 SS Bearings: Ball Bearings, Teflon, Tungsten Carbide (consult factory for additional bearing material options)
Certifications	ISO 9001, AS 9100, NIST
Additional Information	Full line of economical Retrofit Kits are available Factory refurbishment available

Support and Service

Our full-time, dedicated service group offers prompt reliable technical support services such as; evaluation, repair and recertification for flow meters including a competitor’s product. Onsite calibration services are performed by our experienced technicians proficient in using the latest test equipment.

If your application requires unique meter and instrumentation features our engineering team will design the appropriate custom equipment.

Our extensive inventory permits rapid shipment with industry leading delivery times, thus minimizing expensive down time.

Certifications

ISO9001, AS9100, 3A, NIST, NTEP, CTEP, OIML R81/R117/MID, CSA, Intrinsic Safety and Canadian CRN

Worldwide Support

Turbines, Inc. serves customers worldwide with U.S. offices in Cranston, RI (headquarters); Odessa-Midland, TX; Altus, OK; Seneca, SC; and Edmonton, Alberta (Canada).
